Overview

An Arduino recieves commands from the user via buttons and a knob (potentiometer).

The user gets feedback from an LCD screen.

When the selection is complete, the Arduino runs the operation.

A motor turns a threaded rod to move the eraser left and right.

A spring and electromagnet is used to pull the eraser away from the whiteboard when needed.

A pump is also available for a deep clean function, with fluid measurement using a laser.

Additional details

Images and descriptions are included below. Click for full view.

Parts were selected and mocked up in Solidworks.

Front view of the finished product.

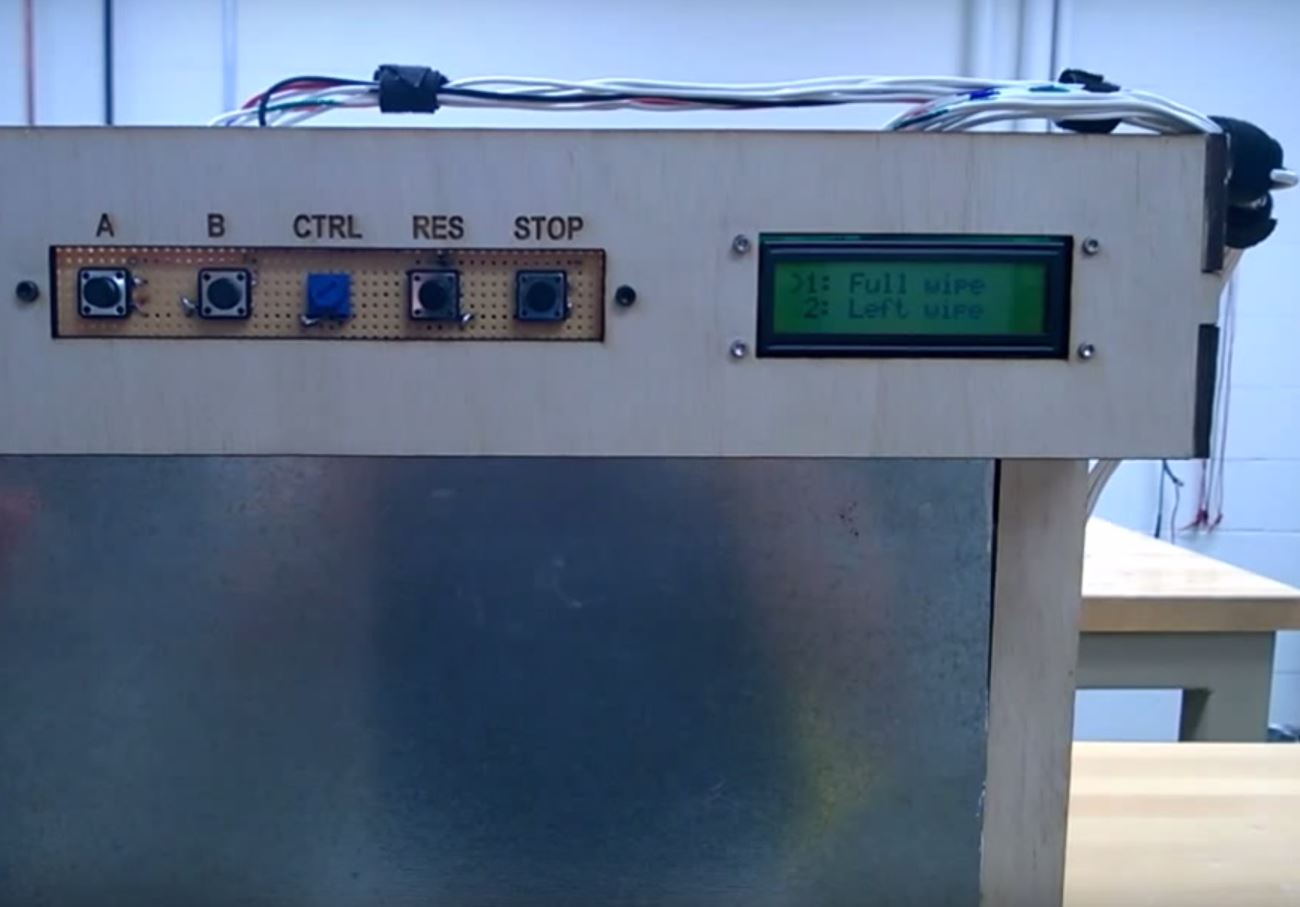

The user interacts with the whiteboard through a system of buttons, a potentiometer, and LCD display.

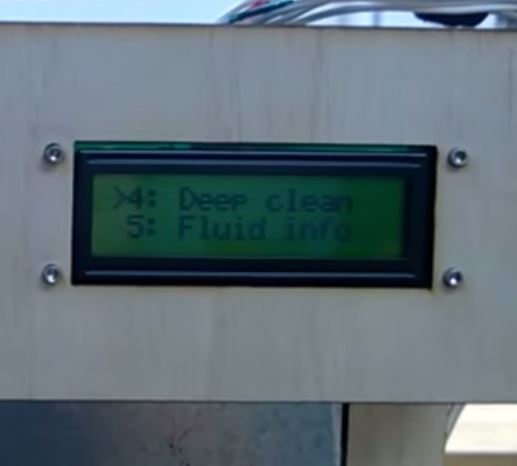

The display shows different options for cleaning.

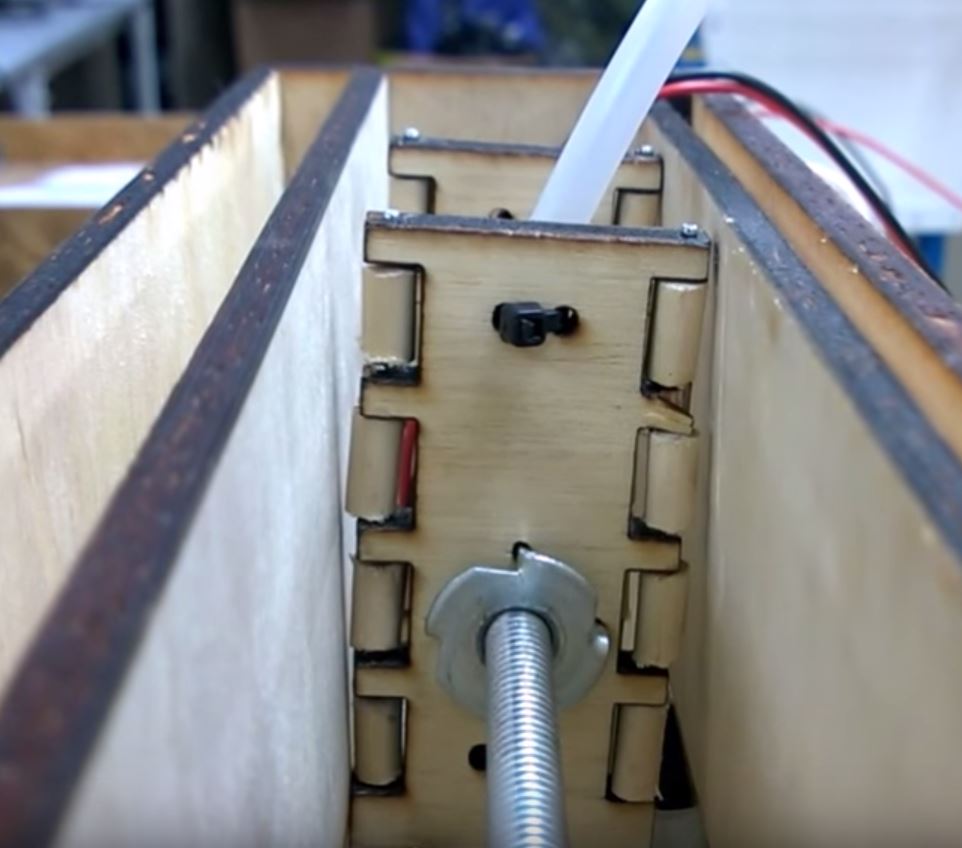

A threaded rod is used as a cheap lead screw to move the eraser along the board.

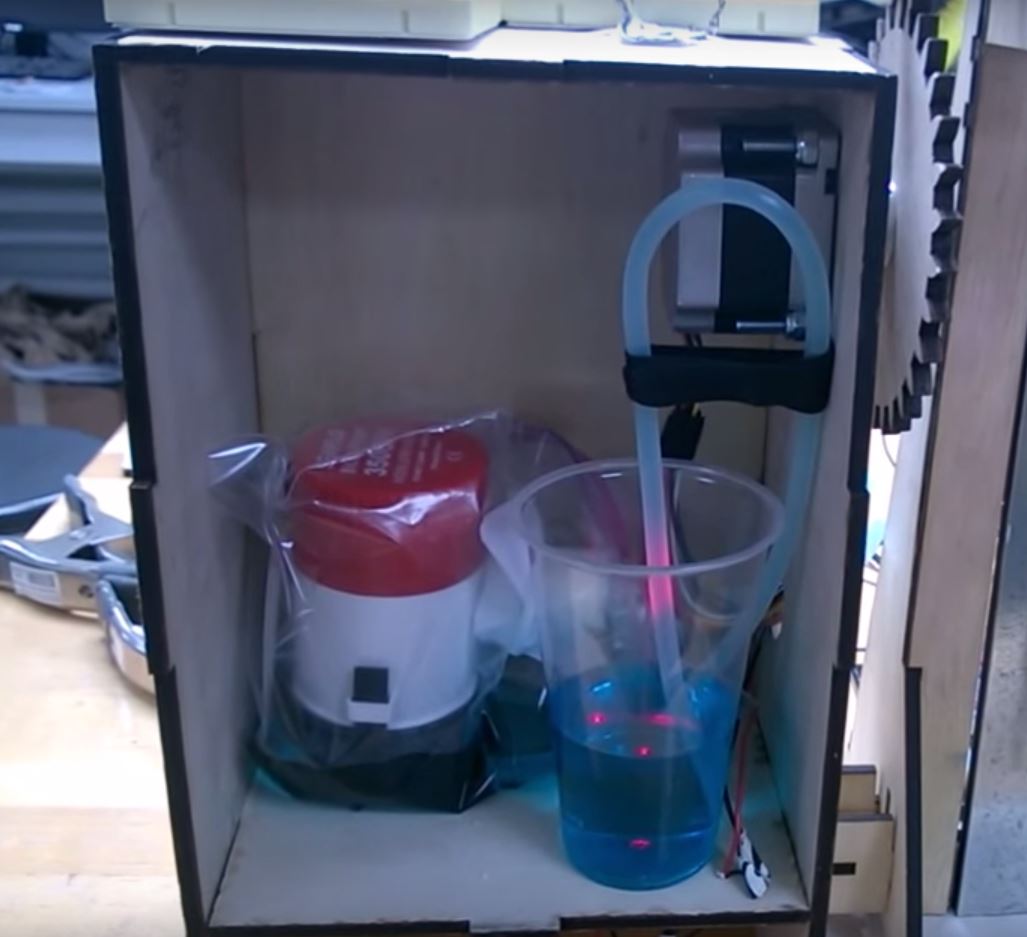

Fluid level was measured using a laser and photoresistor, and a pump was used to deep clean the board with fluid.

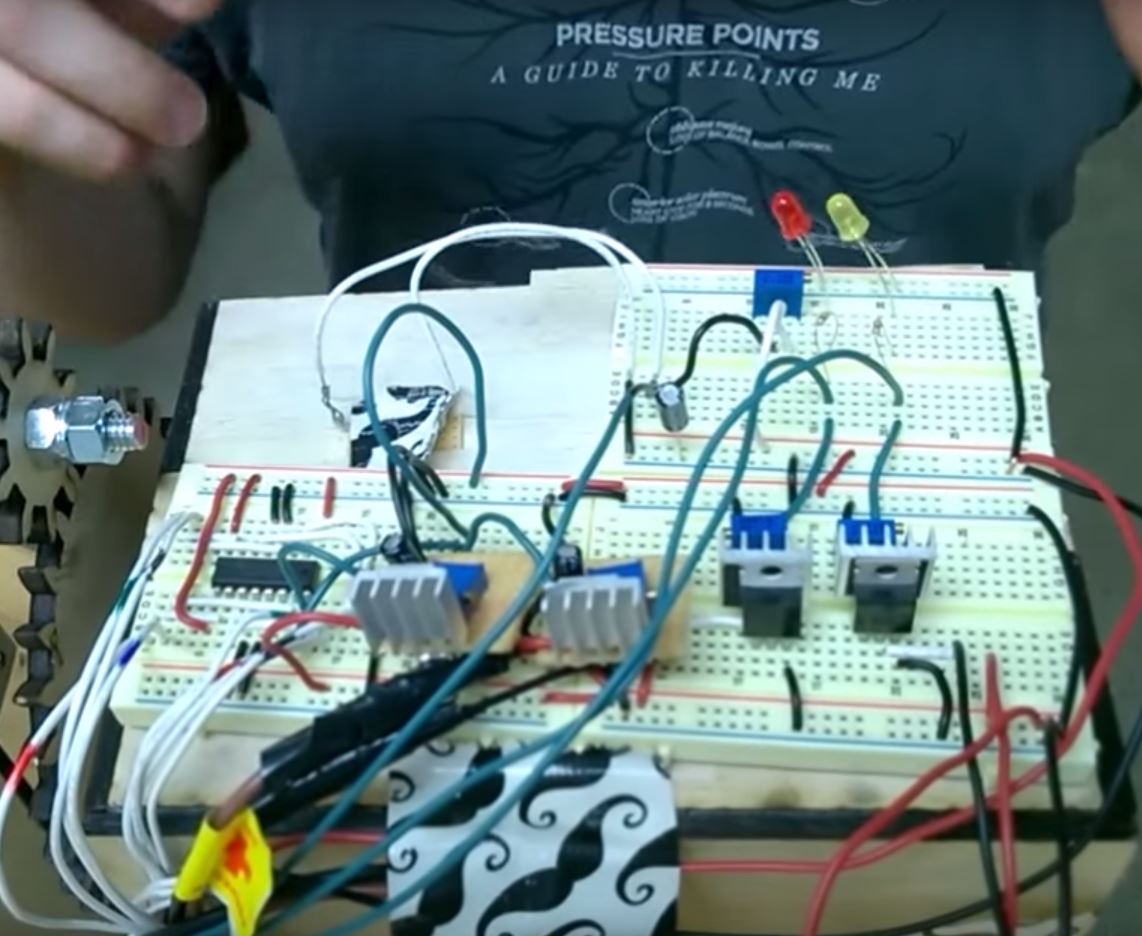

A system of transistors and voltage regulators was used to receive signals from the Arduino and provide power to the components .

The prototype software for the Arduino microcontroller is attached.
