Bedscale Sensor

Resdesigned sensor for weight and medical activity monitor.

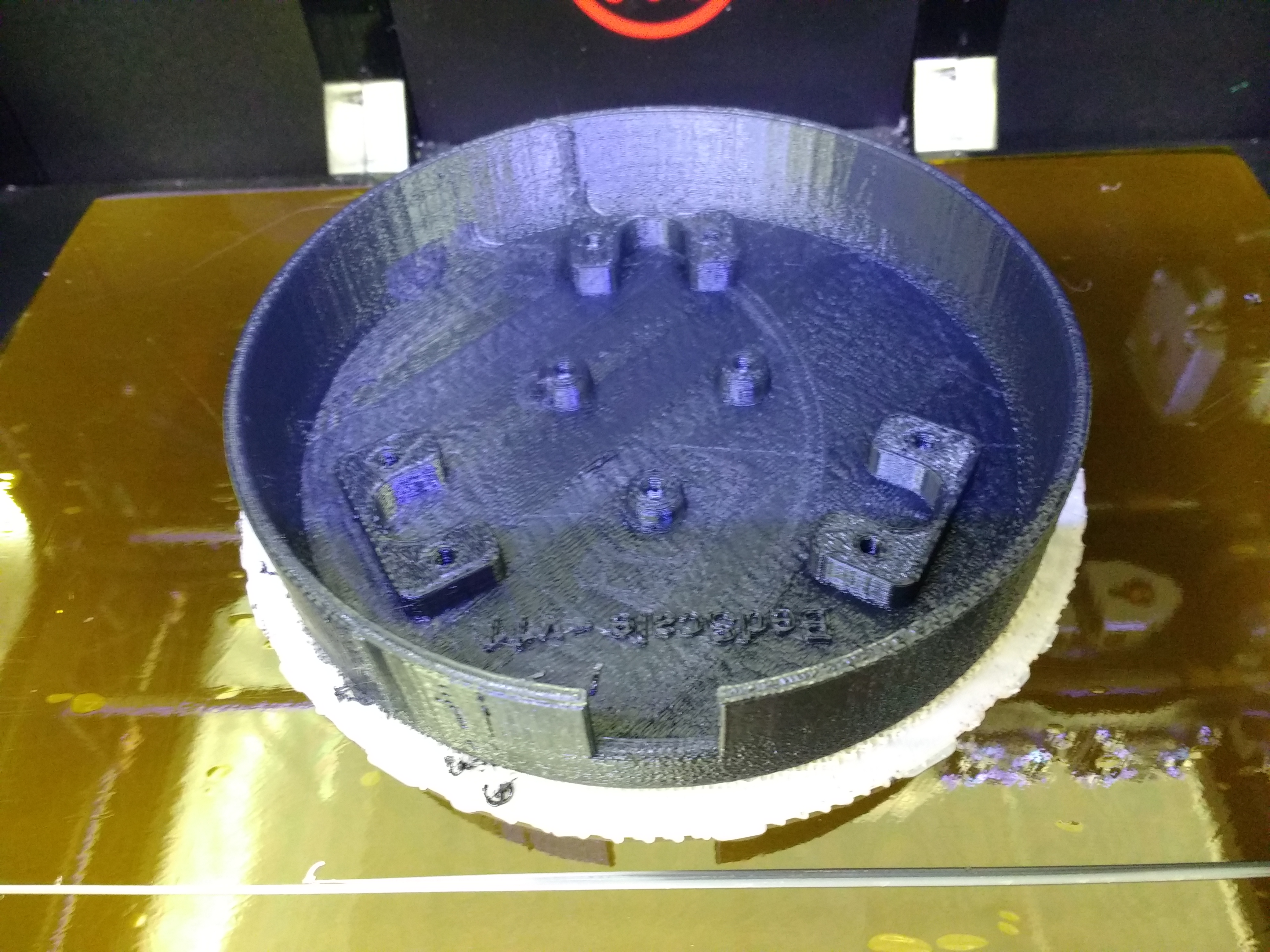

Case

Additively manufactured case.

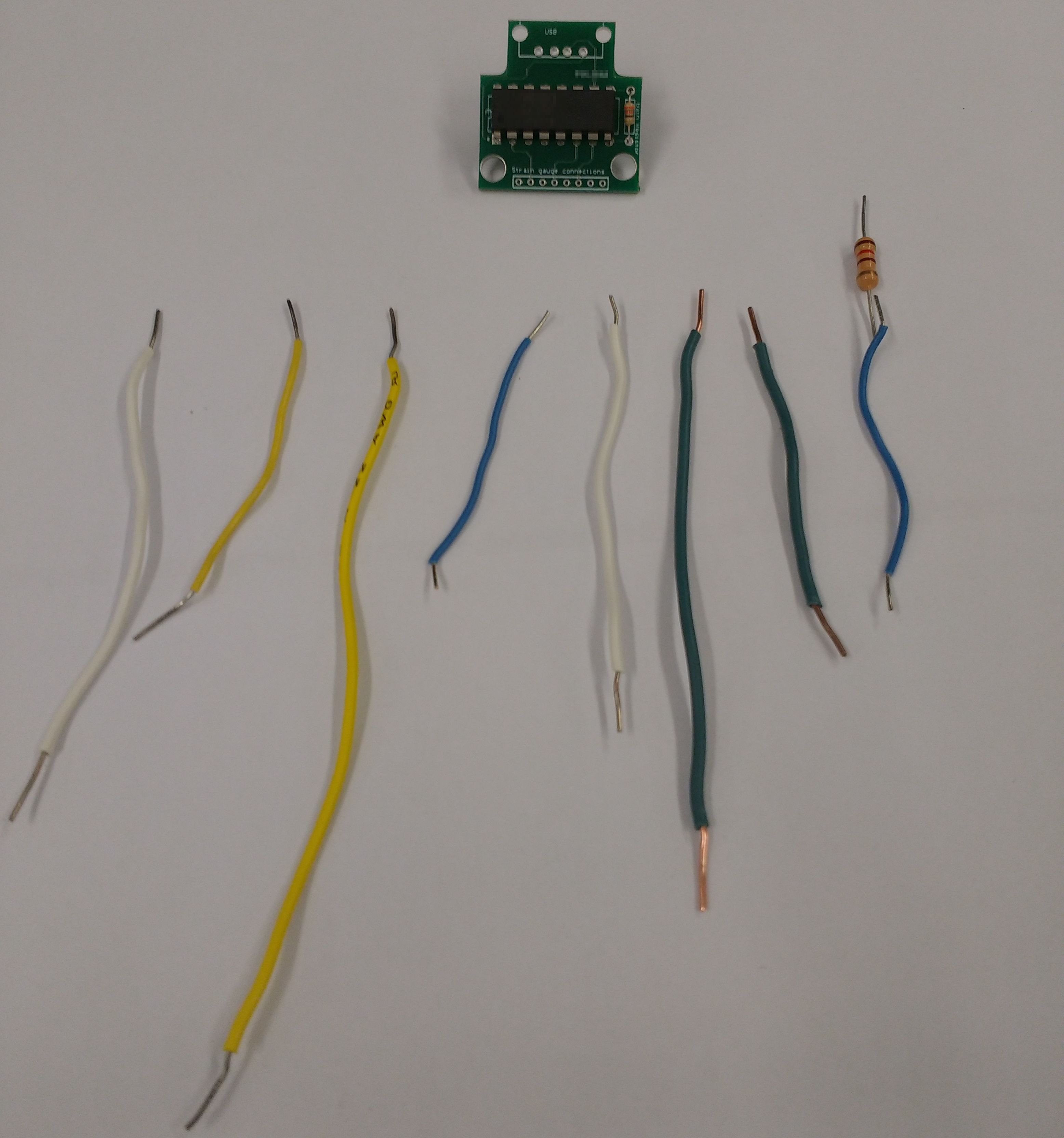

Electronics

Assembly of electronics.

Load Test

The sensor was stress and accuracy tested at different load positions.

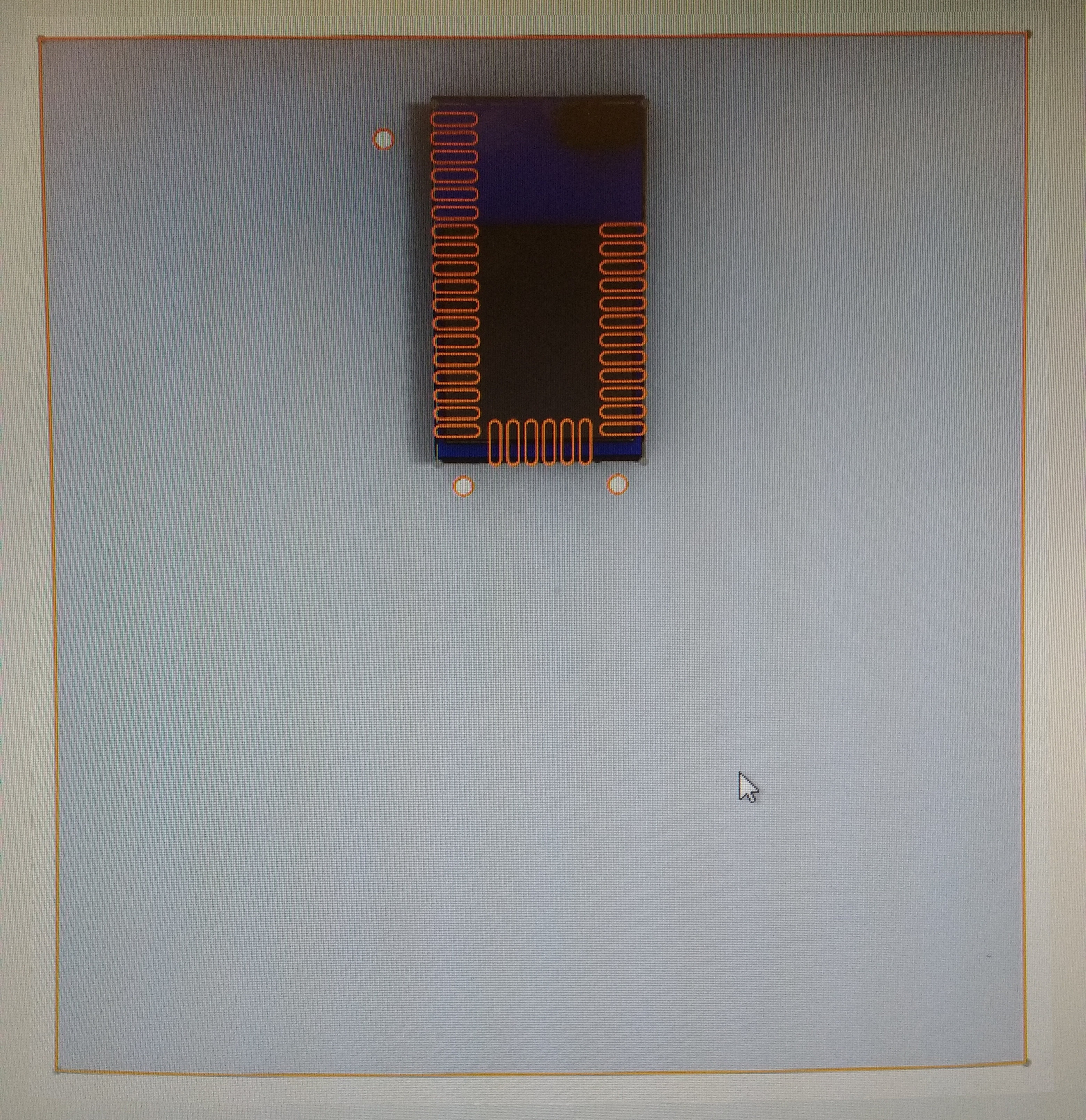

Solder Stencil

Solder stencil created to enable reflow soldering of upgraded electronics.

Accelerometer/Gyroscope Case

Designed to detect the pitch and roll of manual wheelchairs.

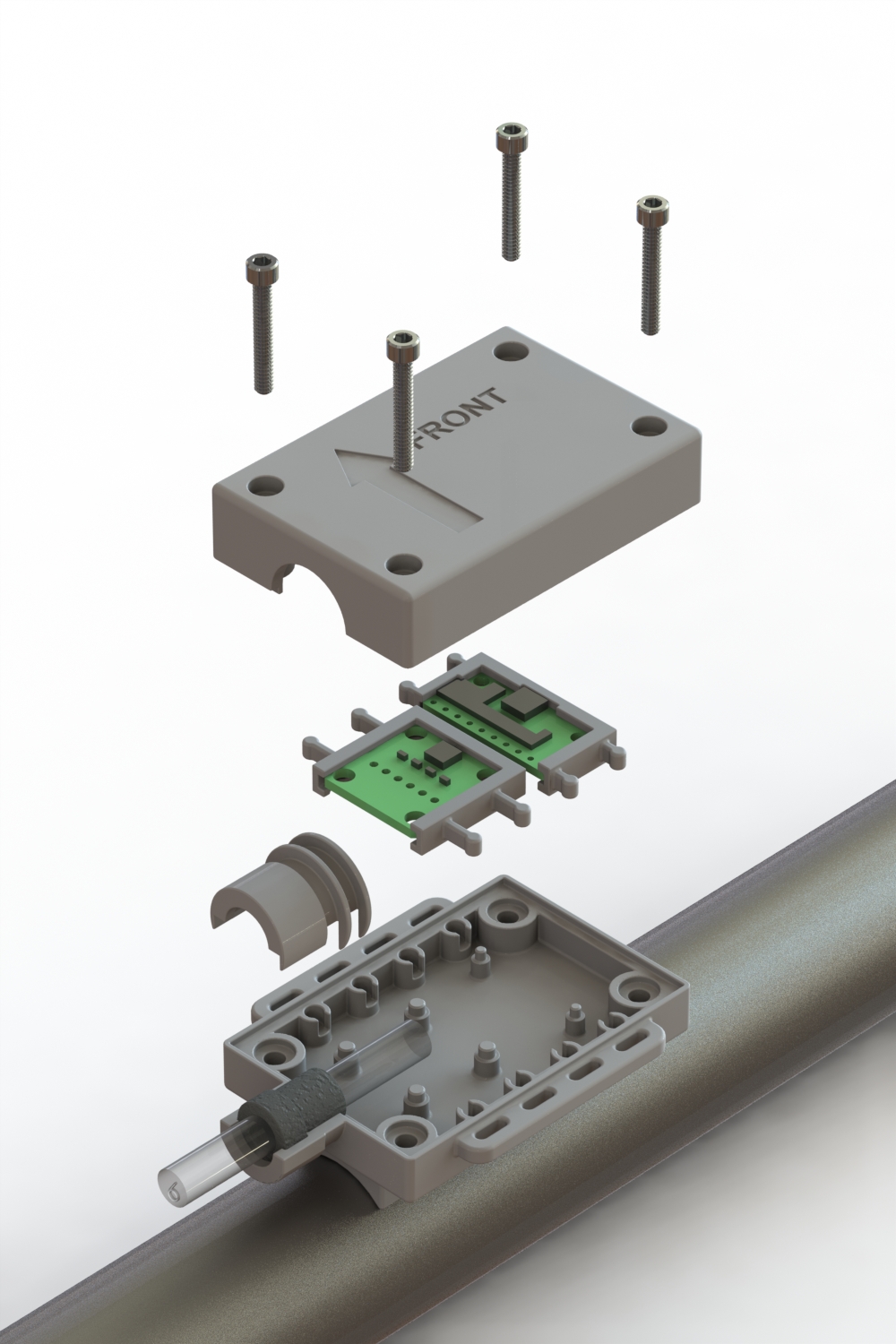

Exploded view

Note the accelerometer and gyroscope board placement.

Front View

Transparent for easier view.

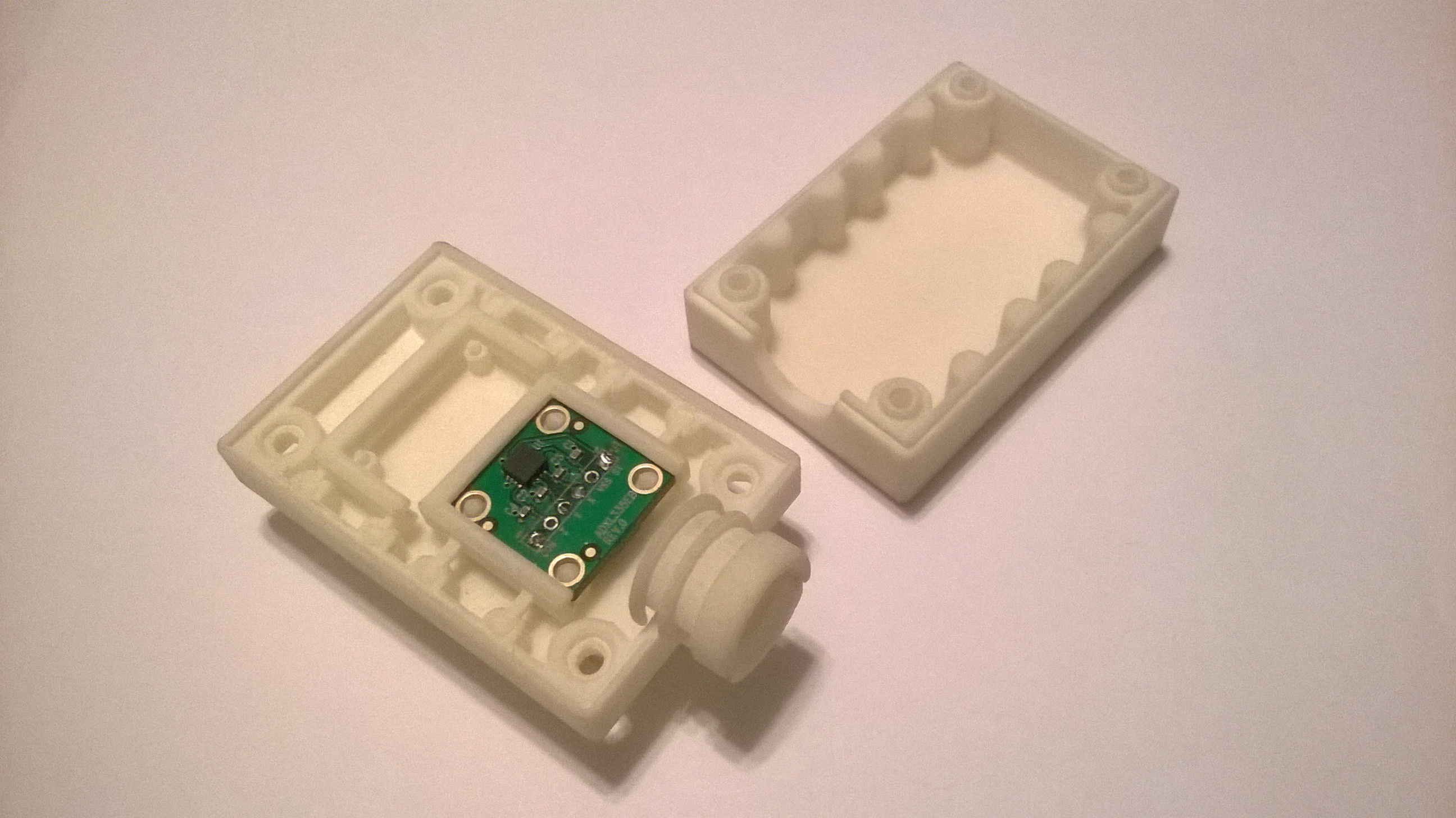

Prototype, Open

Earlier prototype, lid removed.

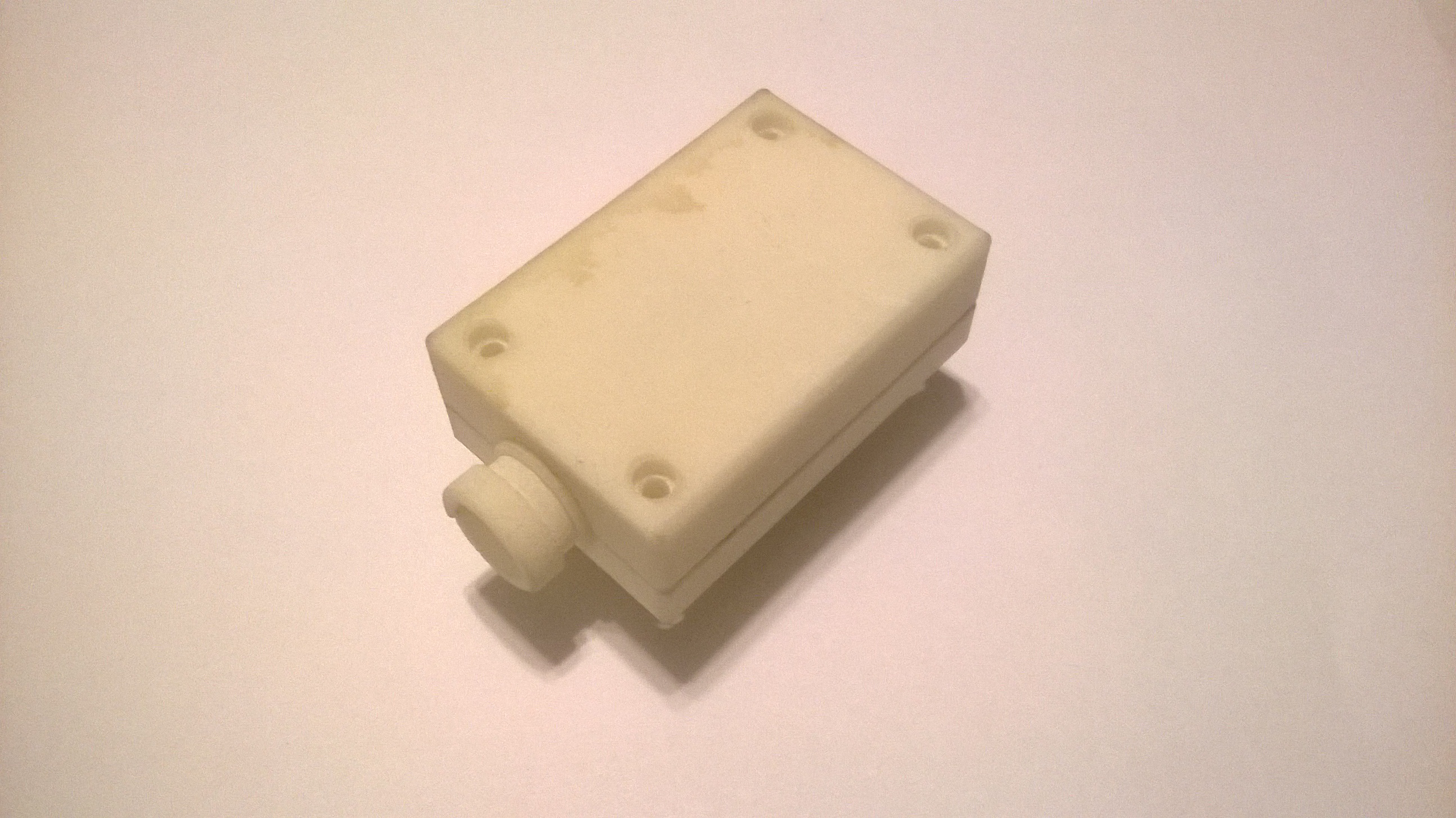

Prototype, Closed

Earlier prototype, assembled.

Seating Detection System

Designed to detect manual wheelchair occupation.

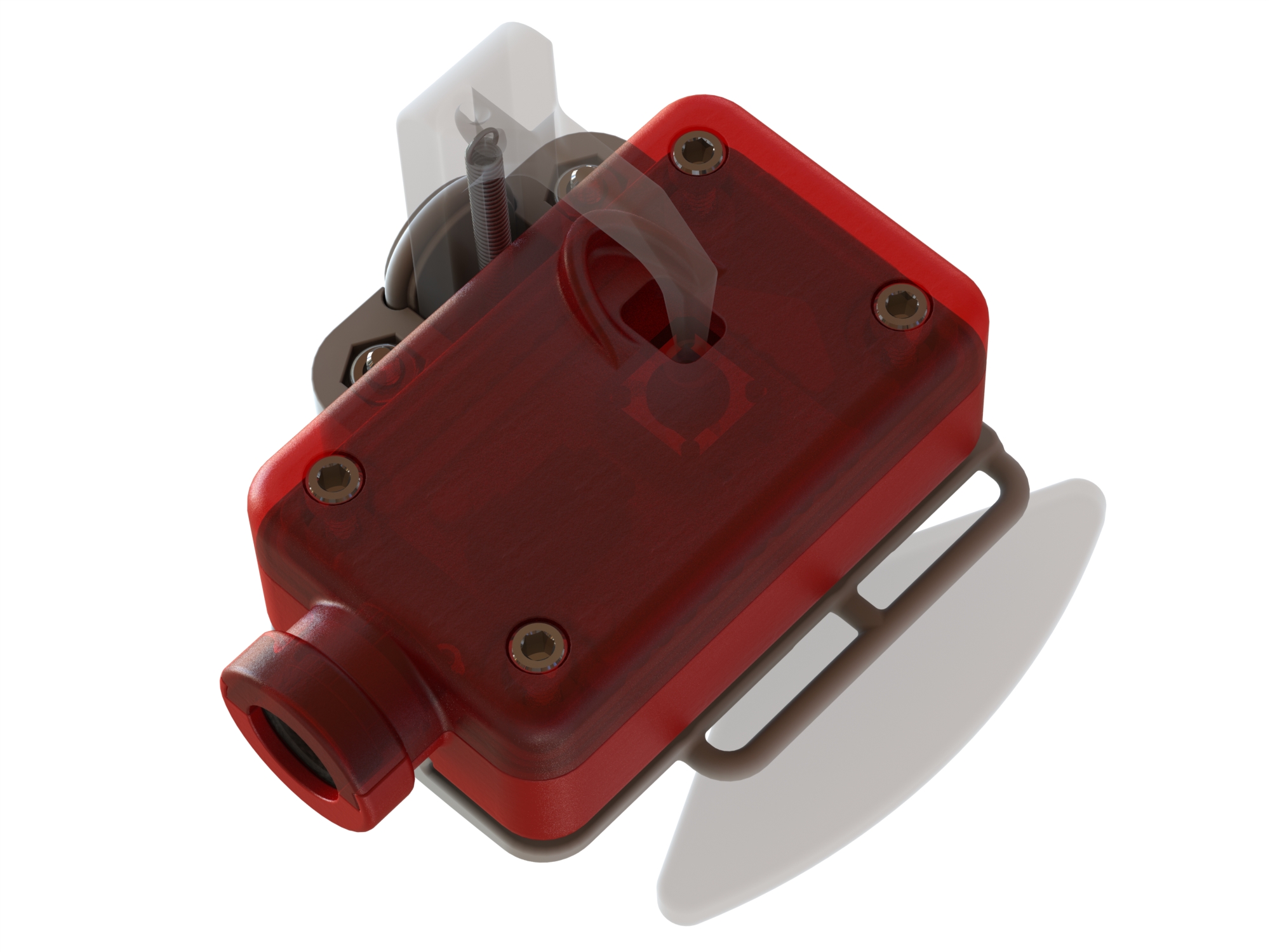

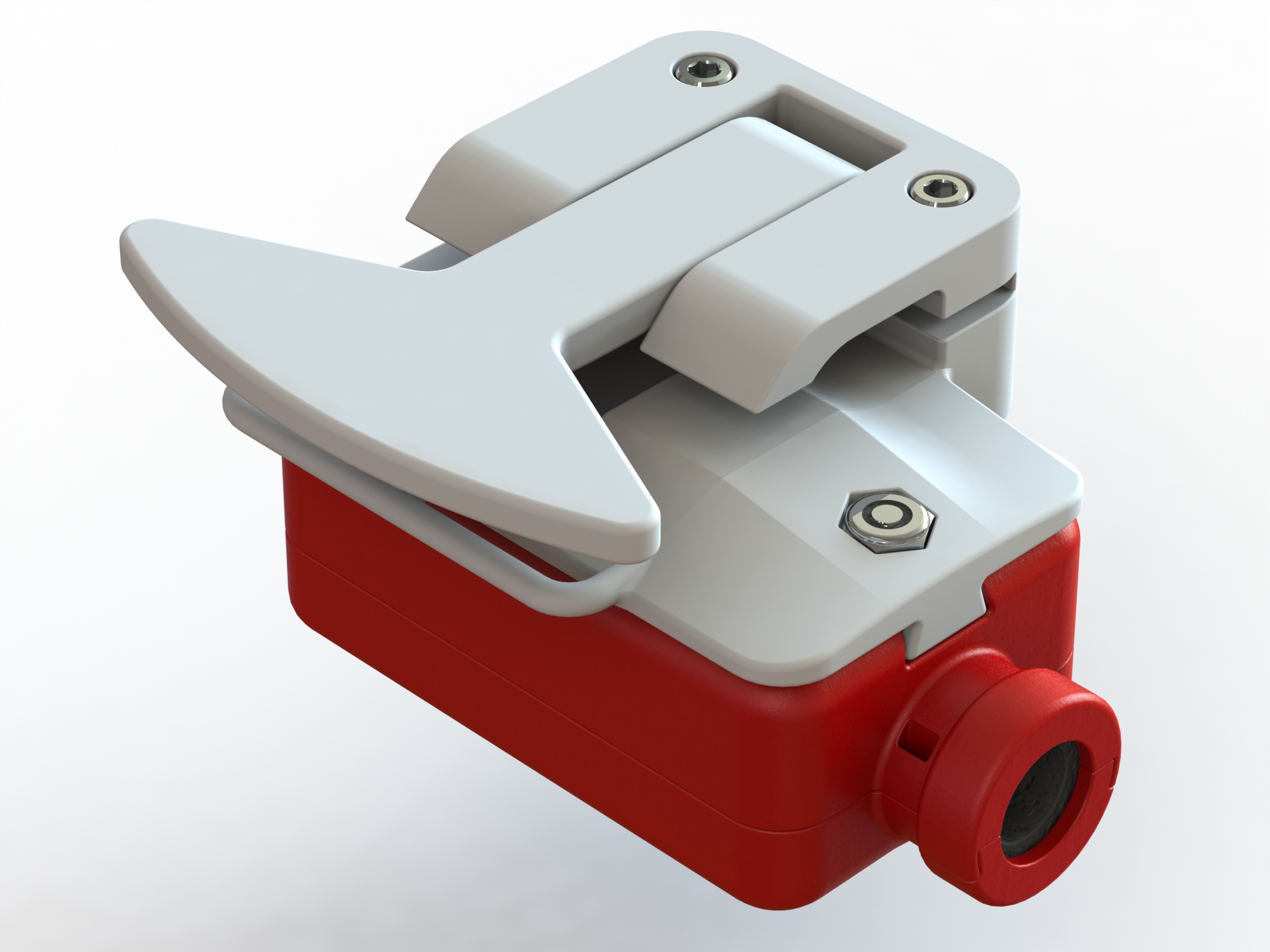

Transparency render

Transparent for easier view of spring and pcb.

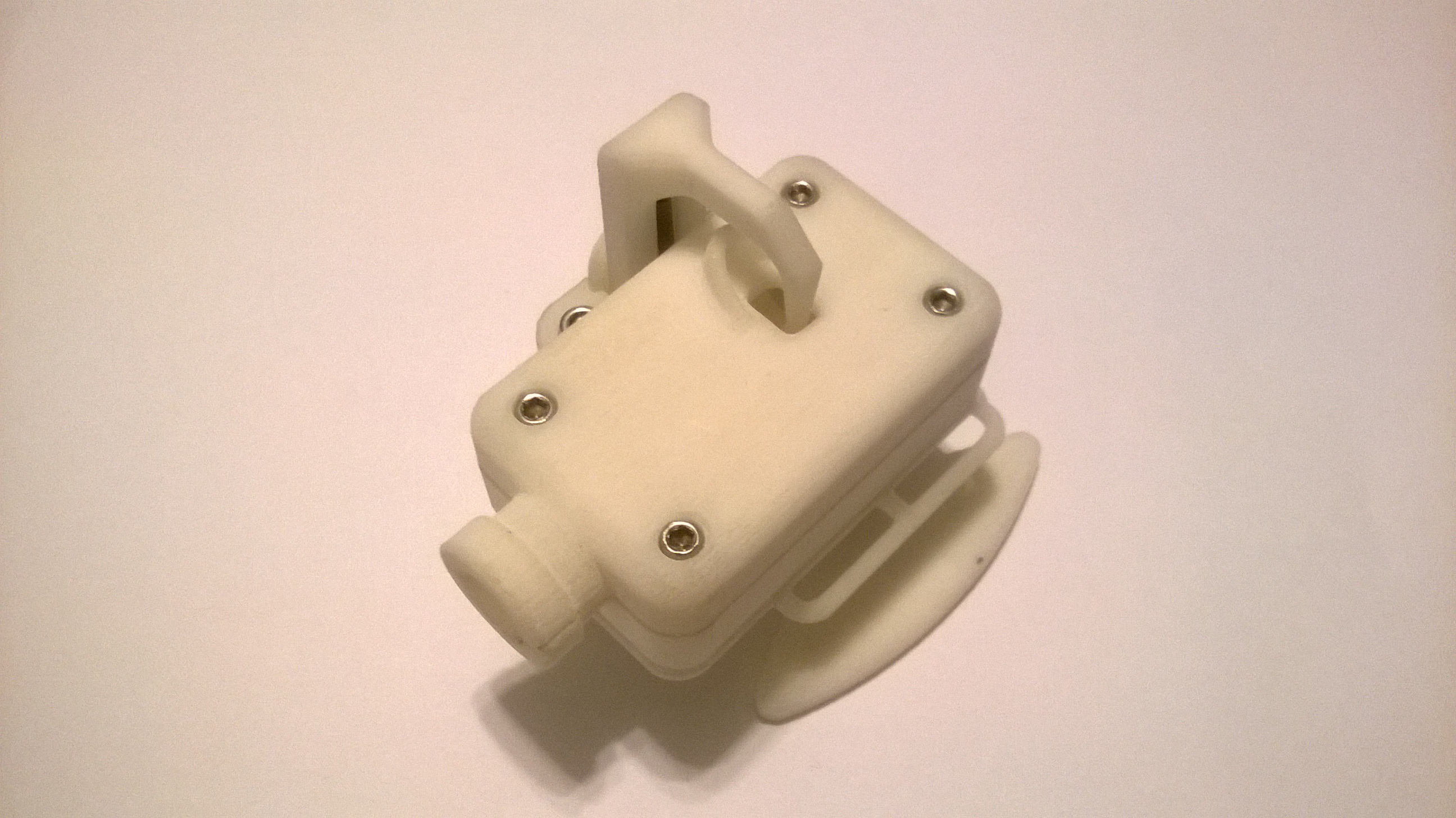

Actual device

Printed and assembled device from same orientation as left.

Top view

Note the wide top section, designed to avoid excess pressure in any point.

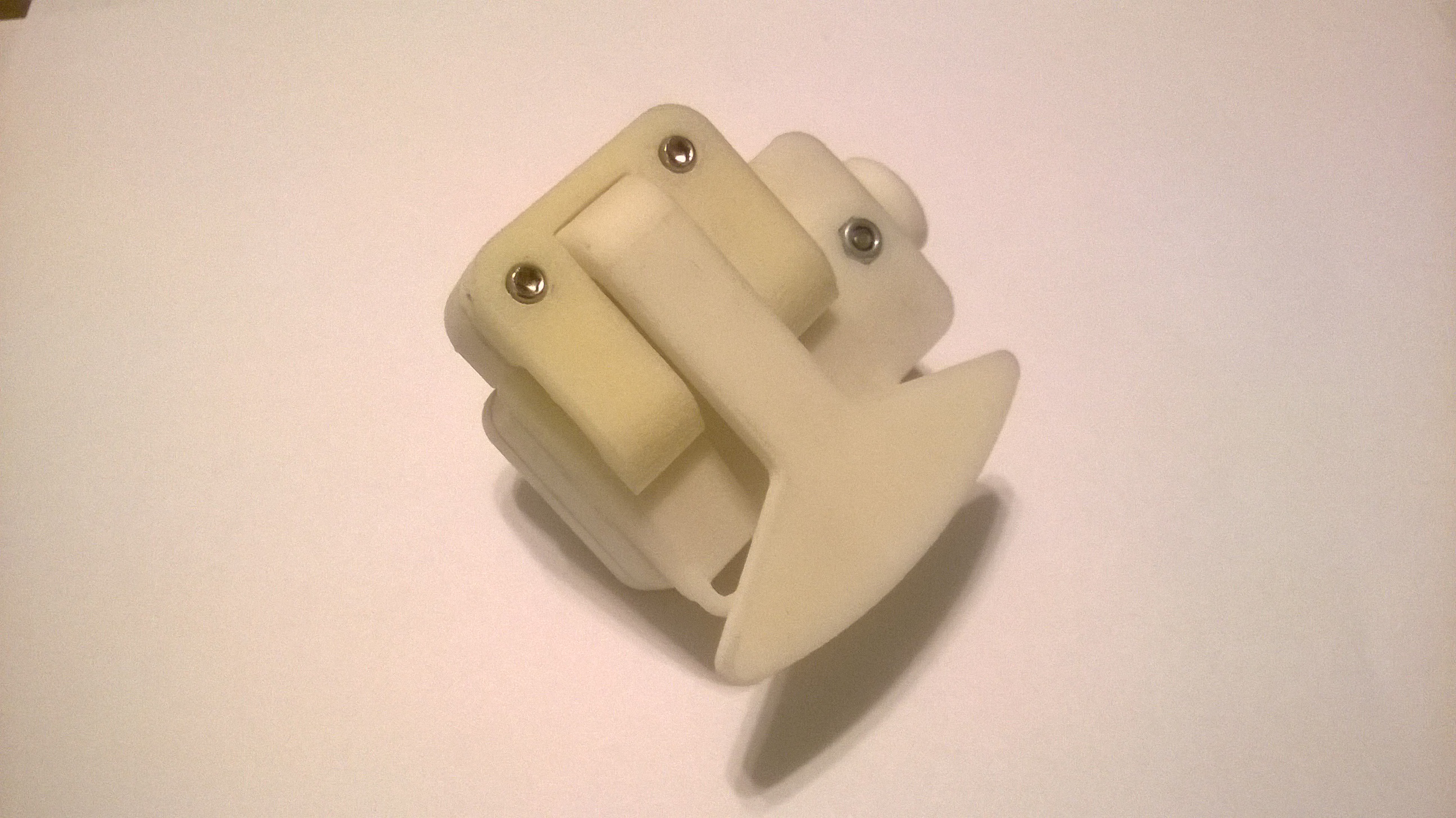

Actual device

Actual device from a similar perspective as left.
